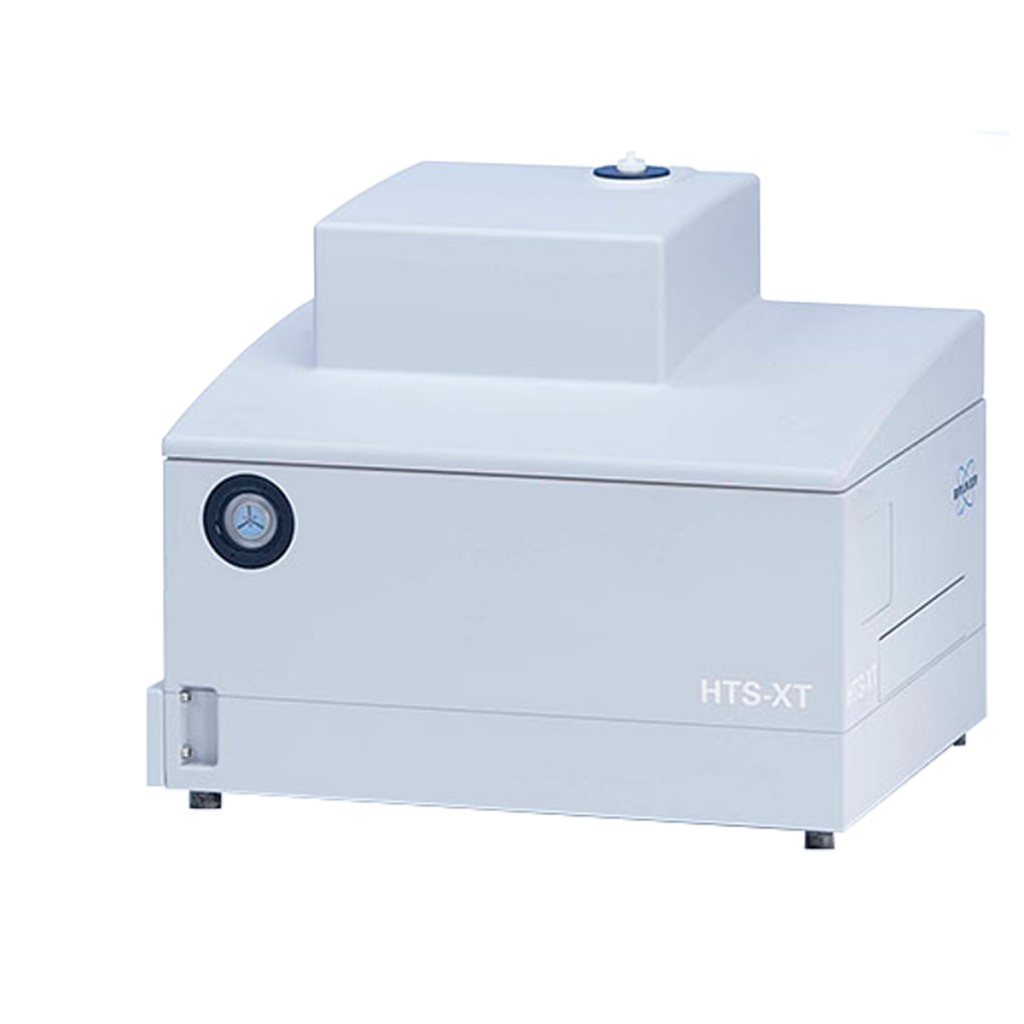

Bruker HTS-XT Microplate Reader

The HTS-XT is a microplate reader extension for high-throughput screening in infrared (IR) spectroscopy The module itself can be connected to different Bruker Optics FTIR spectrometers. Depending on its configuration it can be used for measurements in the mid infrared to the near infrared and even the VIS range.

The sampling plates for the IR analysis correspond to the standardized 96-, 384- or 1536-well microplate formats. For analysis, approximately 1-20 µl of a liquid sample are placed on a single sampling position of the microplate and dried. The sample volume prepared depends on sample form, measurement mode and sample plate design.

Solid samples are first dried and ground before they are filled into a well of the microplate. The loaded sample plate is moved into the sealed optics by a motorized drawer. Then the measurement of the microplate is performed fully automated in the measurement modes transmission and/or reflectance by successively moving each sample position into the focus of the IR beam.
